Multi-boring machines ALFA and FORMA

MULTI-BORING MACHINES

ALFA 21 CLASSIC – ALFA 27 CLASSIC – ALFA 35 CLASSIC

FORMA 63H – FORMA 85LCD

MULTI-BORING MACHINES TYPE ALFA – CLASSIC

MULTI-BORING MACHINE ALFA 21 CLASSIC

Perceuses Alpha et Forma

MULTI-BORING MACHINE ALFA 27 CLASSIC

With 21 quick change spindles

21 spindles

Voltage 380 V

Technical data :

– System 32 mm

– Distance between the 1er and the last spindle   640 mm

– Max hole depth 70 mm

– Working table dimensions 864 mm x 500 mm

– Maximum dimensions of pieces to be drilled  800 mm x 3 000 mm

– Spindle rotation per minute 2 800 t/min

– Motor power 2.5 CV

– 1 alu fence of 3 000 mm with 4 stops

– Revolver fence 6 different positions for depth

– For 45° position of head with fence

– Air pressure  6 – 8 bars

– Weight  295 kg

– Overall size

1 070 mm x 890 mm x 1 240 mm

Perceuses Alpha et Forma

With 27 quick change spindles

27 spindles

Voltage 380 V

Technical data :

– System 32 mm

– Distance between the 1er and the last spindle   832 mm

– Max hole depth 70 mm

– Working table dimensions 1 056 mm x 500 mm

– Maximum dimensions of pieces to be drilled  992 mm x 3 000 mm

– Spindle rotation per minute 2 800 t/min

– Motor power 2.5 CV

– 1 alu fence of 3 000 mm with 4 stops

– Revolver fence 6 different positions for depth

– For 45° position of head with fence

– Air pressure  6 – 8 bars

– Weight  388 kg

– Overall size

1 142 mm x 800 mm x 1 140 mm

MULTI-BORING MACHINE ALFA 35 CLASSIC

Perceuses Alpha et Forma

With 35 quick change spindles

35 spindles

Voltage 380 V

Technical data :

– System 32 mm

– Distance between the 1er and the last spindle   1 088 mm

– Maximum hole depth 70 mm

– Working table dimensions 1 454 mm x 590 mm

– Maximum dimensions of pieces to be drilled  1 308 mm x 3 000 mm

– Spindle rotation per minute 2 800 t/min

– Motor power 3 CV

– 1 alu fence of 3 000 mm with 4 stops

– Revolver fence 6 different positions for depth

– For 45° position of head with fence

– Air pressure  6 – 8 bars

– Weight  454 kg

– Overall size

1 590 mm x 860 mm x 1 140 mm

MULTI-BORING MACHINES TYPE FORMA

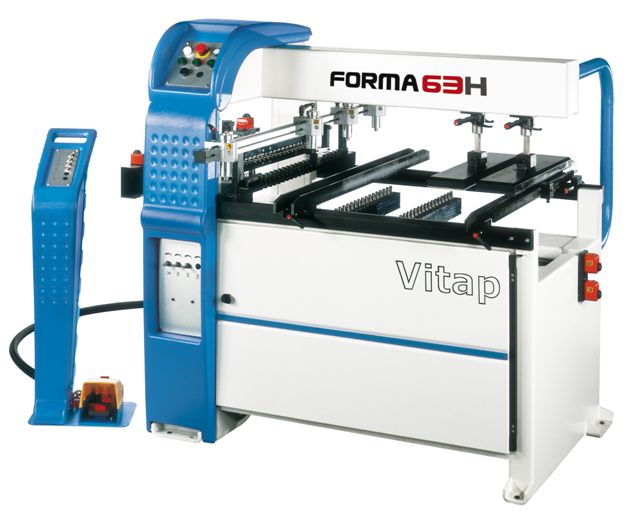

MUTLI-BORING MACHINE FORMA 63H

Perceuses Alpha et Forma

3 heads of drilling

With 30 quick change spindles

Voltage 380 V

Technical data :

– Control panel with pedal

– Distance between each spindle 32 mm

– Max panel thickness   80 mm

– Max hole depth  70 mm

– Spindle speed rotation 2 800 rpm

– Motor power 4,5 CV

– 1 horizontal group 21 spindles  quick change spindle with SIKO counter

– 2 vertical group 21 spindles  adjustable quick change spindle with SIKO counter

– Fence with 4 stops

– 2 adjustable pressure

– Max. distance between the vertical head 850 mm

– Min. distance between the vertical head 150 mm

– Weight  750 kg

– Overall size :

1 900 mm x 1 200 mm x 1 300 mm

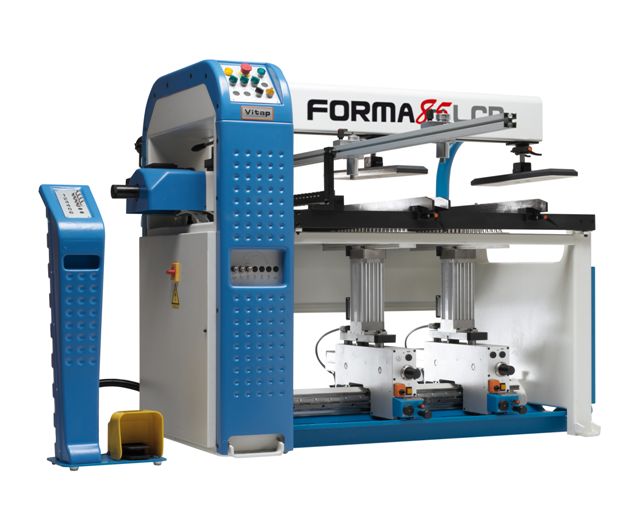

MULTI-BORING MACHINE FORMA 85LCD

Perceuses Alpha et Forma

3 heads of drilling

With 30 quick change spindles

Voltage 380 V

Technical data :

– Micrometric stops for left-right positioning

– Hydraulic brake

– Vetical control drilling group

– Monoralls with ball bushing

– Dust suction system

– Double drilling head turnable (90°)

– Double drilling head turnable (0°)

– Maximum thickness of pieces to be drilled 80 mm

– Maximum depth of hole 70 mm

– Spindle rotations per minute 2 800 tr/mn

– Control panel with pedal

– 1 horizontal group 21 spindles quick change spindle with SIKO counter

– 2 vertical group 21 spindles adjustable quick change spindle with SIKO counter

– Fence with 4 stops

– 2 adjustable pressure

– Motor power  2,5 CV – 2 CV

– Air pressure  6 – 8 bars

– Max. distance between the vertical head 850 mm

– Min. distance between the vertical head 96 mm

– Weight 800 kg

– Overall size :

1 800 mm x 1 150 mm x 1 460 mm
